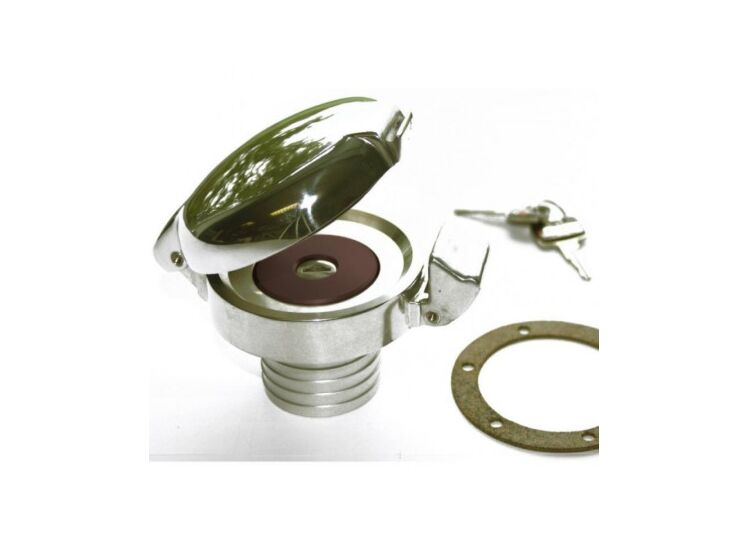

Tankdop met hals (50mm), met slot

Name: Tankdop met hals (50mm), met slot
SKU: C30LD
Price: 245.1 EUR
Availability: InStock

Artikelnummer:

C30LD

Specifications:

Options: N/A

Fixing Arrangement: M72 Nut Ring (Screwed in from the bottom)

Applications: Fuel, Oil, AdBlue & Water Tanks

Compatibilities: Operation Temperature -40°C to +80°C

Finish: Natural Polished

Weight: 270 grams

Materials:

Centre Cap: Aluminium LM25

Seal: Viton A or Fibre Gasket (Optional)

Dimensions:

Overall Length A: 132.0mm

Overall Width B: 100.0mm

Overall Height C: 48.0mm

Neck Diameter D: Ø51.0mm

Connection E: M72 x 1.5 Thread

Filling Aperture: Ø52.0mm

Technische specificaties
Merk	Newton
