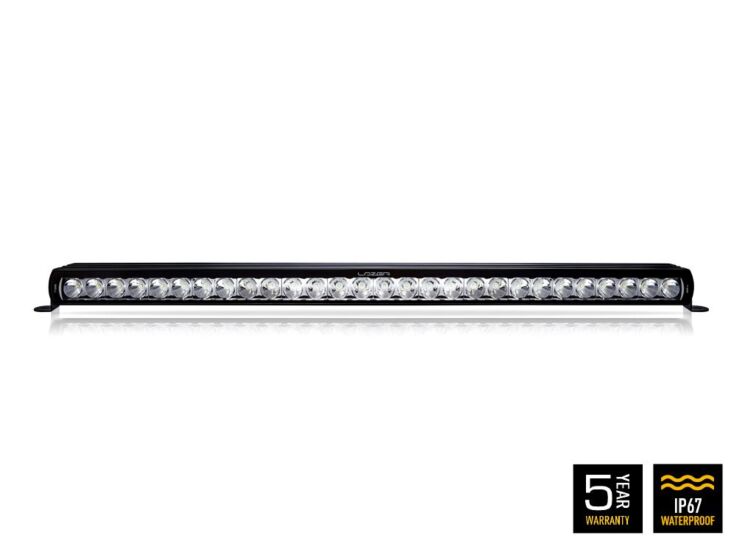

T28 EVOLUTION 28952 LUMENS

Voltage Range (DC) 10-32V

LED Life 50,000 hours

Weight 3590 gr

HIGH BEAM FUNCTION

Total Luminous Flux 28952 Lm

Total Driver 'FOV' Flux † 17429 Lm

Colour Temperature 5000K

Number of High Output LEDs 28

Power Consumption 278 Watts

Current Draw (at 14.4V) 19.3 Amps

Start-up Time * 100ms

CERTIFICATION

High Beam Not certified

DIMENSIONS

Width 1164 mm

Depth 68 mm

Height 64 mm

PHOTOMETRIC DATA

Horizontal Beam Angle 28 deg / 90 deg

0.25 lx Line 1470 metres

0.5 lx Line 1039 metres

1 lx Line 735 metres

3 lx Line 424 metres

What's included:

- x1 T28 Evolution LED Spotlight

- x3 Centre Mount (1114k)

- x1 Side Bracket Kit (1118k)

- x1 Single-Lamp Wiring Kit with Switch (1L-HP-300)

- x1 Installation Instructions
