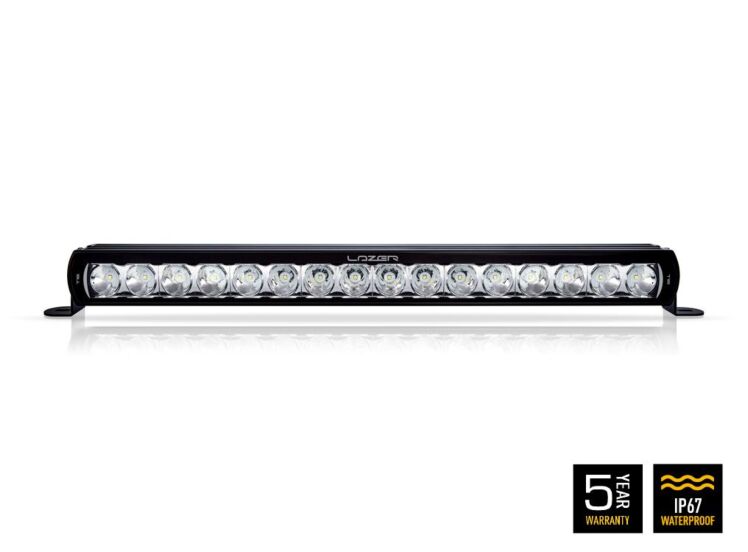

T16 EVOLUTION 16544 LUMENS

Voltage Range (DC) 10-32V

LED Life 50,000 hours

Weight 2142 gr

HIGH BEAM FUNCTION

Total Luminous Flux 16544 Lm

Total Driver 'FOV' Flux † 9959 Lm

Colour Temperature 5000K

Number of High Output LEDs 16

Power Consumption 192 Watts

Current Draw (at 14.4V) 13.4 Amps

Start-up Time * 100ms

CERTIFICATION

High Beam Not certified

DIMENSIONS

Width 684 mm

Depth 68 mm

Height 64 mm

PHOTOMETRIC DATA

Horizontal Beam Angle 28 deg / 90 deg

0.25 lx Line 1111 metres

0.5 lx Line 786 metres

1 lx Line 555 metres

3 lx Line 321 metres

What's included:

- x1 T16 Evolution LED Spotlight

- x2 Centre Mount (1114k)

- x1 Side Bracket Kit (1118k)

- x1 Single-Lamp Wiring Kit with Switch (1L-HP-300)

- x1 Installation Instructions
