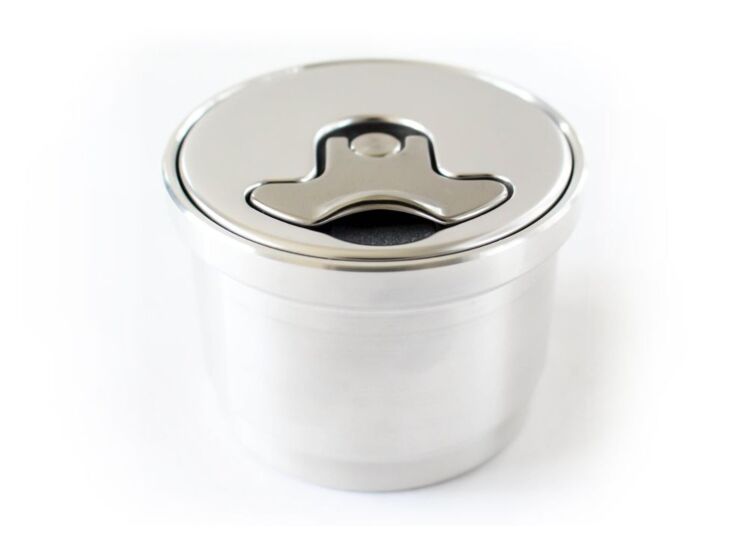

In te lassen tankdop, verlengde hals, zonder slot

Specifications:

Fixing Arrangement: Weld-On or Adhesive

Applications: Fuel, Oil & Water Tanks

Compatibilities: Extreme Fuels

 Operation Temperature -40°C to +80°C

Finish: Anodised

Weight: 125.0 grams

Supplied With: Centre Cap

 Weld-On Neck

Materials:

Centre Cap: Aluminium Alloy 6063/T6 Forging

Weld-On Ring: Aluminium Alloy 6082/T6

O-Ring: Viton A (FPM or FKM)

Saddle: Acetal POM Kepital F20-03

Lever & Centre Pin: Stainless Steel 303/304

Washer & Nyloc Nut: Stainless Steel A2 Type

Dimensions:

Outside Diameter A: 62.50mm

Centre Cap Diameter B: 57.5mm

Bolt Circle Diameter C: N/A

Depth D: 41.5m

Spigot: 57.0 (Ø58.0 Cut-Out)

Neck Diameter E/F: N/A

Flange Thickness: N/A
