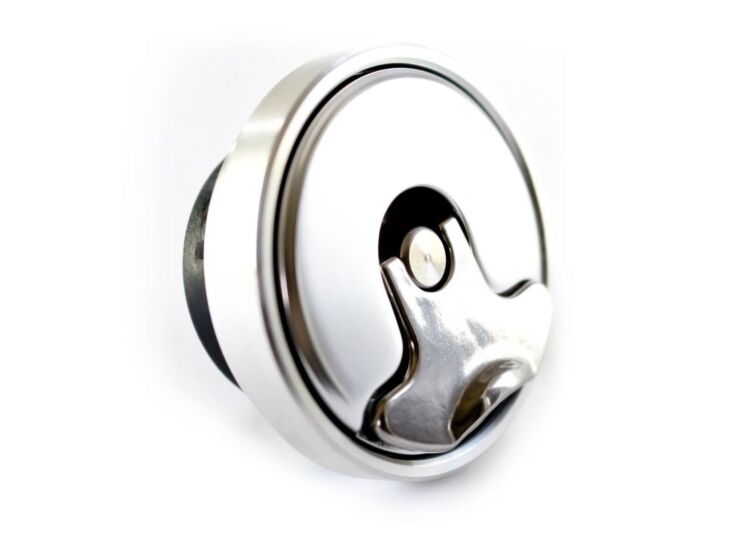

In te lassen tankdop, korte hals

Name: In te lassen tankdop, korte hals
SKU: A2NS
Price: 103.27 EUR
Availability: InStock

Artikelnummer:

A2NS

Specifications:

Fixing Arrangement: Weld-On or Adhesive

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Jet Fuel 100LL

Operation Temperature -40°C to +80°C

Finish: Ring Natural & Cap Anodised Clear (Silver)

Weight: 75.0 grams

Supplied With: Cap

Weld-On Ring

Materials:

Centre Cap: Aluminium Alloy 6063 Forging

Flange Neck: Aluminium Alloy 6082/T6 Machined

O-Ring: Viton A (FPM or FKM)

Saddle: Acetal POM Kepital F20-03

Lever & Centre Pin: Stainless Steel 303/304

Washer & Nyloc Nut: Stainless Steel A2 Type

Dimensions:

Outside Diameter A: 52.0mm

Centre Diameter B: 47.0mm

Bolts Circle Diameter C: N/A

Depth D: 30.0mm

Spigot E: Ø46.0mm (Ø47.00 Cut-Out)

Neck Diameter: N/A

Flange Thickness: N/A

Technische specificaties
Merk	Newton
