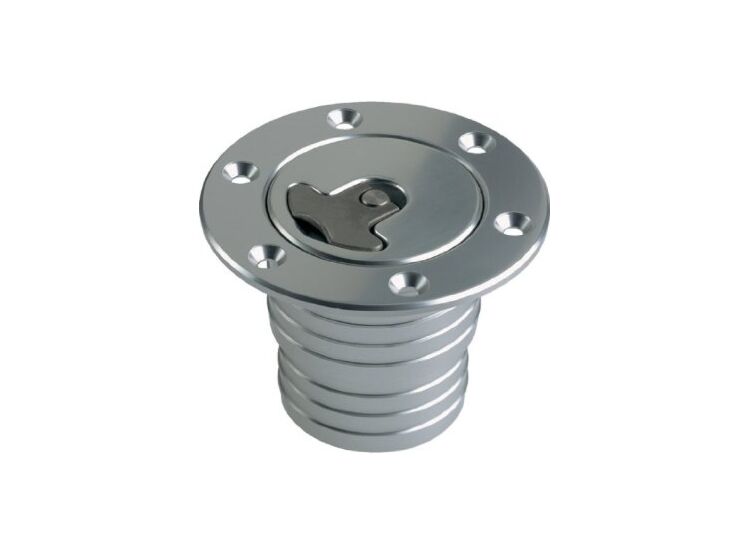

Flens met tapse hals (58/52MM), 6 schroeven, zonder slot

Specifications

Options Standards No-Lock (S) or Locking (L)

Fixing Arrangement 6 Bolts

Applications Fuel, Oil & Water Tanks

Materials

Centre-Forging: Aluminium Alloy 6082

Flange/Neck: Aluminium Alloy 6082/T6

Finish Anodised Clear (Silver)

Option: Black

Weight

(No Lock) 232.5g

Dimensions

• Outside Diameter A 94.0 mm Flange Neck Options
• Centre Diameter B 58.4 mm A36NS/L2LF (6 Bolt, lead free)

• Bolt Circle Dia. (PCD) C 76.2 mm A36NS/L38 (6 Bolt, 38mm flange neck)

• Bore 44.5 mm A36NL2K (6 Bolt, lock, with chain)

• Spigot 62.4 mm A36NL2KV (6 Bolt, lock, with chain & vent)

• Body Diameter 58.0 mm A36NL2V (6 Bolt, lock, vented)

• Neck Diameter 58.0/52.0 mm

• Overall Depth I 62.5 mm
