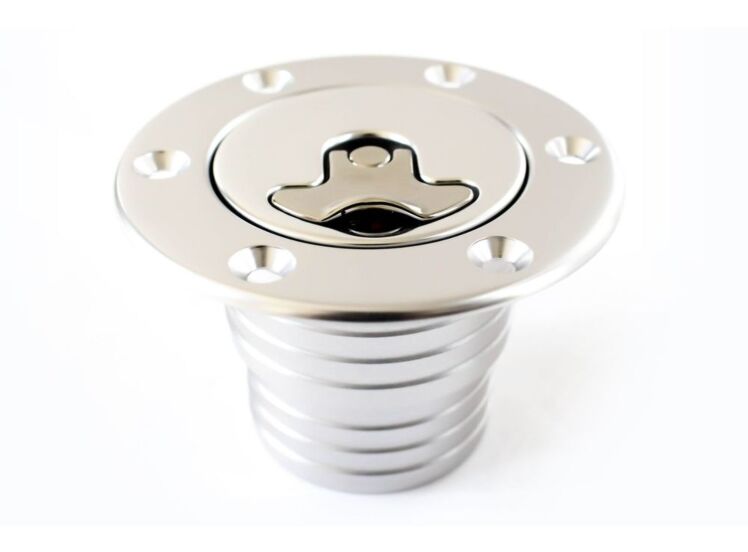

Flens met tapse hals (58/52MM), 6 schroeven, met slot

Specifications

Options: Locking.

Fixing Arrangement: 6 x M5 Countersunk Bolts

Applications: Fuel, Oil & Water Tanks

Finish: Anodised Clear (Silver)

Weight: 251 g

Supplied with:

        (2) Keys

  (6) Nylock Nuts

  (1) Nitrile bonded Cork Gasket

  (6) M5 x 12mm S/S screws

  (6) Washers

Materials

Centre-Forging: Aluminium Alloy 6082

Flange: Aluminium Alloy 6082/T6

O Ring: Viton A

Saddle: Acetal

Dimensions

Outside Diameter A: 94.0 mm

Centre Diameter B: 58.0 mm

Bolt Circle Dia (PCD) C 76.2 mm (3.0”)

Overall Depth I 52.0 mm

Bore 44.5 mm

Spigot 64.0 mm

Neck Diameter G 57.0 mm and 50.8 mm

Flange Thickness 3.25 mm
