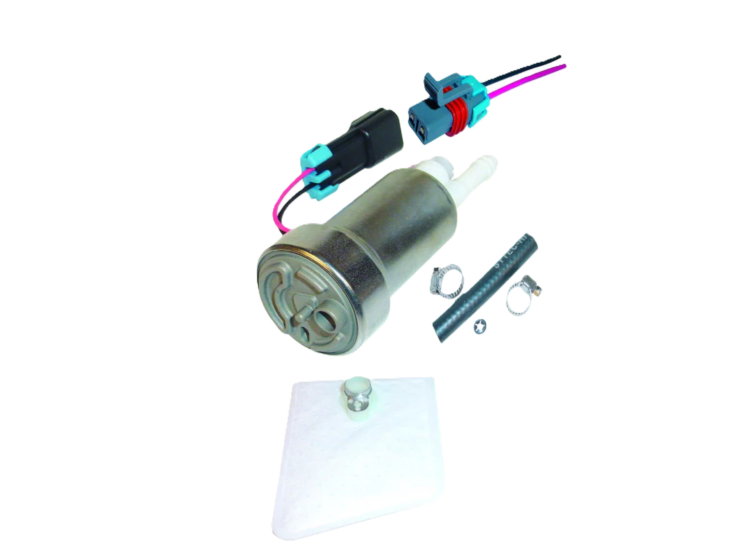

WALBRO GST520 525LPH IN TANK FUEL PUMP KIT

Walbro 520 lph Competition In Tank Fuel Pump Kit F90000285

Outperforms all current market in-tank fuel pumps

Designed for engines with up to 985hp

Award Winning OE Technology

High Pressure, High flow performance

OEM technology designed and developed for E85.

All pumping components have been validated to OEM specification for approved use in E85/Flex fuel application

Fittings In (mm):- 11

Fittings Out (mm):- 9

Pump:- Ti Automotive (Walbro) F90000285

Voltage DC:- 12

Pulse Width Modulation Compatible:- Yes

One way valve:- Yes

Flow Ltr/Hr (Max):- 528

Flow Ltr/Hr @ 3 Bar (44psi):- 435

Flow Ltr/Hr @ 5 Bar (73psi):- 345

Max Pressure (Bar):- 8.3

Above flow data was derived from independant testing

Length (mm):- 130

Diameter (mm):- 50 / 39

Weight (Kg):-0.430

Flow Charge please see PDF File
