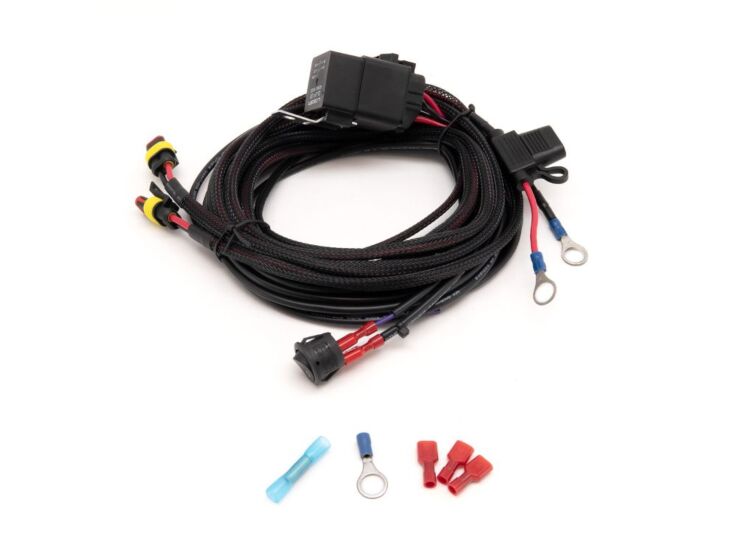

TWO-LAMP WIRING KIT (LOW POWER, 12V)
SKU:
2L-LP-120
Two-Lamp Wiring Kit for Lazer E-mark approved driving lights
1.2m cable lengths
Includes 12V relay and 35 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
Superseal connections
Includes optional on/off switch for independent operation of high beam
Braided cable sections for added protection in engine bay
1.2m cable lengths
Includes 12V relay and 35 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
Superseal connections
Includes optional on/off switch for independent operation of high beam
Braided cable sections for added protection in engine bay
Details
The ideal solution for wiring a pair of E-mark approved Lazer high performance LED spotlights. The setup is quick, easy, and reliable with 2-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 35A fuse, a battery terminal at one end, and 1.2m of flex on both lamp cables, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Compatible with:
ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std / Elite)
Linear-36
Linear-42
Linear-48
Technical specifications
| Manufacturer | Lazer |
|---|
