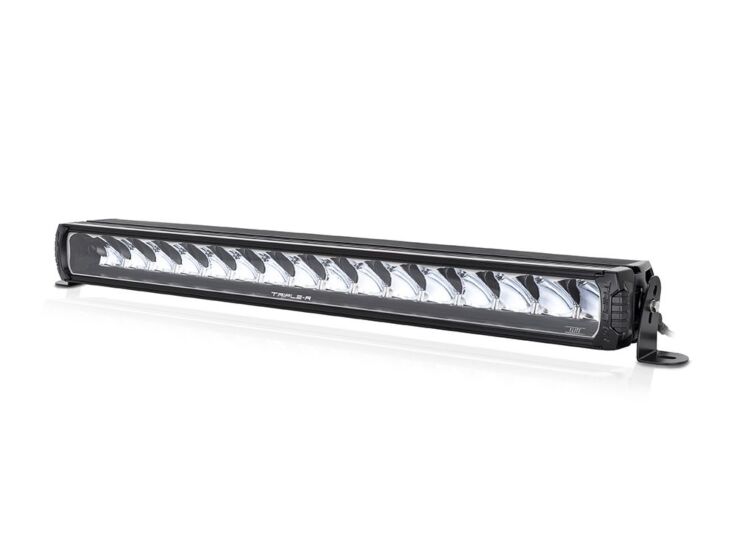

TRIPLE-R 16 ELITE 18040 LUMENS

What's included:

- x1 Triple-R 16 Elite LED Lamp

- x2 Centre Mount (1114k)

- x1 Side Mount Kit (1118k)

- x1 Installation Instructions

Voltage Range (DC) 10-32V

LED Life 50,000 hrs

Weight 2.84 kg

HIGH BEAM FUNCTION

Total Luminous Flux

18040 Lm

Total Driver 'FOV' Flux † 11888 Lm

Colour Temperature 5000k

Number of High Output LEDs 16

Power Consumption 208 Watts

Current Draw (at 14.4V) 14.4 Amps

Start-up Time * 100ms

CERTIFICATION

High Beam N/A

E-Mark Ref N/A

PHOTOMETRIC DATA

Horiz Beam Angle 30 Deg

0.25 lx Line 1920 metres

0.5 lx Line 1358 metres

1 lx Line 960 metres

3 lx Line 554 metres
