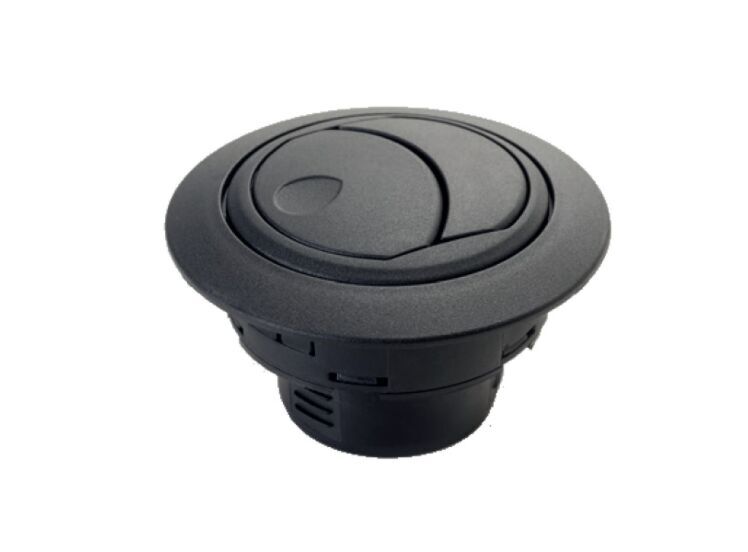

Large Round Air Vent 60MM

A high quality directional air vent available to fit a variety of hose sizes. These air vents are extremely durable which make them perfect for air distribution in numerous applications including automotive, marine, agricultural etc. The vent louvres can be rotated 360° to direct air where needed or can be closed off entirely to increase flow through other vents in the system.

The front fascia is the same physical dimension no matter what size of vent ordered, the differences are the sized 'top-hats' that snap into the back of the units that fit your selected hose size.

The vent can snap fit into panel thicknesses between 2 - 5mm, however if your panel is thicker than 5mm you can always use a dab of sealant to hold the vent into position.

Specifications: Hose size 60MM

- Outer Diameter: 100.8 mm

- Hole Size: 76 mm

- Panel Thickness: 2 - 5 mm

- Minimum Temperature: -40 °C

- Maximum Temperature: 90 °C

- Material: PA 6.6+GF30 / ABS
