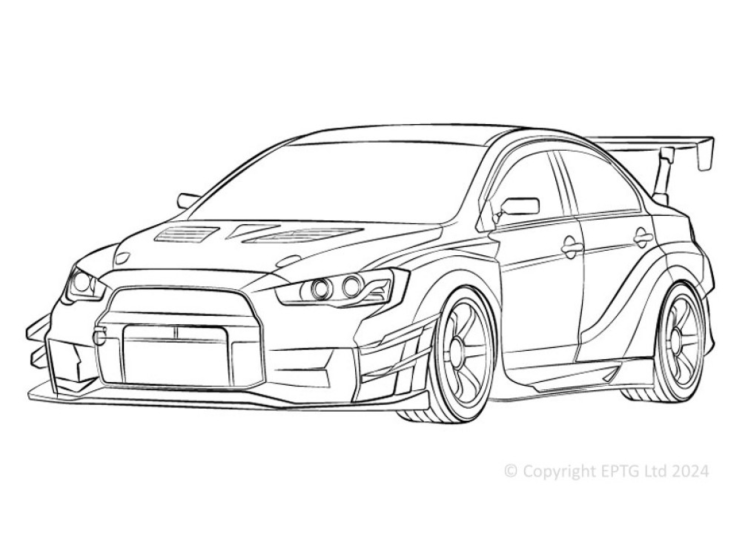

Lancer Evolution X CZ4A (10/07 - 05/16)

Name: Lancer Evolution X CZ4A (10/07 - 05/16)
SKU: PF_RS_MSB11
Availability: InStock

SKU:

PF_RS_MSB11

Options

Grouped product items
	Amount required per car	Ref. in diagram	Art.no.	Price
PowerAlign Camber Bolt Kit (14mm)	1	0	PFA100-14	€34.41
Front Arm Front Bush, Camber Adjustable	2	1	PFF44-401G	€86.18
Front Arm Rear Bush, Caster Adjustable	2	2	PFF44-402G	€131.62
Front Anti Roll Bar To Chassis Bush 25mm	2	3	PFF44-403-25	€30.64
Front Anti Roll Bar To Chassis Bush 27mm	2	3	PFF44-403-27	€30.64
Front Upper Engine/Trans Mount (Track)	2	4	PFF44-105	€75.21
Front Upper Engine/Trans Mount (Road)	2	4	PFF44-105R	€75.21
Front Lower Front Engine Mount (Track)	1	5	PFF44-106	€57.93
Front Lower Front Engine Mount (Road)	1	5	PFF44-106R	€57.93
Front Lower Rear Diff Mount (Track)	1	6	PFF44-107	€53.22
Front Lower Rear Diff Mount (Road)	1	6	PFF44-107R	€53.22
Front Lower Diff Mount (Track)	1	6	PFF44-108	€53.22
Front Lower Diff Mount (Road)	1	6	PFF44-108R	€53.22
Rear Upper Arm Front Bush	2	10	PFF44-401	€42.25
Rear Anti Roll Bar To Chassis Bush 23mm	2	13	PFF44-403-23	€30.64

PFF44-401 is a non-adjustable bush. For on-car camber adjustment, please use PFF44-401G.
PFF44-402G is on-car caster adjustable.
The Front Lower Diff Mount has 2 possible sizes. For 62mm use PFF44-107 and for 70.5mm use PFF44-108.
Engine and Transmission mounts ending 'R' are for Road use and are made using our softer Yellow 70A material. For track and race use, please use the Purple 80A 'non-R' part numbers.
PFF44-105(R) is used twice on the vehicle. It is used for the Upper Engine Mount as well as the Upper Gearbox Mount.
Increased NVH should be expected when fitting the 'non-R' parts.
