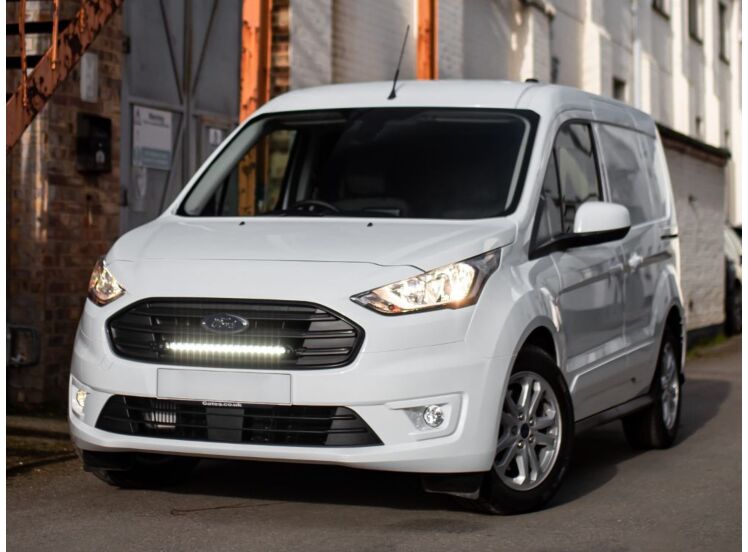

Ford Transit Connect (2018+) Grille Kit

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.


The Ford Transit Connect kit, for vehicles produced since 2018, includes a Linear-18 (Standard or Elite grade) High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.


Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.


Please note, the Ford Transit Connect Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Spotlight.

Based on Elite setup i.e. x1 Linear-18 Elite High Performance LED Lamp:

Voltage Range 9-32V
LED Life 50,000 hours
Weight 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 12150 Lm
Number of High Output LEDs 36
Power Consumption 126 Watts
Current Draw (at 14.4V) 8.8 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 45
DIMENSIONS
Width 532 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
0.25 lx Line 975 metres
0.5 lx Line 690 metres
1 lx Line 488 metres
3 lx Line 282 metres
