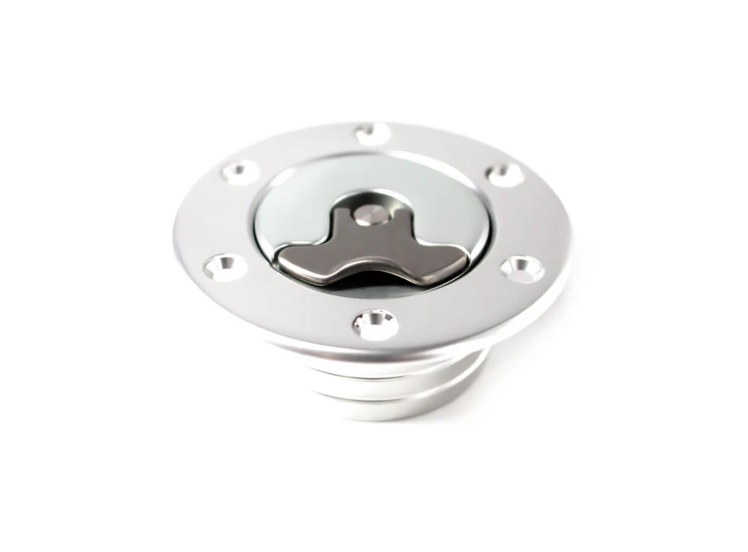

Flens met hals, 6 schroeven

SKU:

A26NS

Specifications

Options: No-Lock Only.

Fixing Arrangement: 6 x M4 Countersunk Bolts

Applications: Fuel, Oil & Water Tanks

Finish: Anodised Clear (Silver)

Weight: 137g

Supplied with:

(1) Gasket

(6) M5 x 12mm S/S screws

(6) Washers

(6) Nylock Nuts

Materials

Centre-Forging: Aluminium Alloy 6082

Flange: Aluminium Alloy 6082/T6

O Ring: Viton A

Saddle: Acetal

Dimensions

Outside Diameter A: 80.0 mm

Centre Diameter B: 46.0 mm

Bolt Circle Dia. (PCD) C: 63.5 mm (2.5")

Neck Diameter G 50.8 mm

Overall Depth I 31 mm

Bore Diameter 35.5 mm

Flange Thickness 2.5 mm

Technical specifications
Manufacturer	Newton
