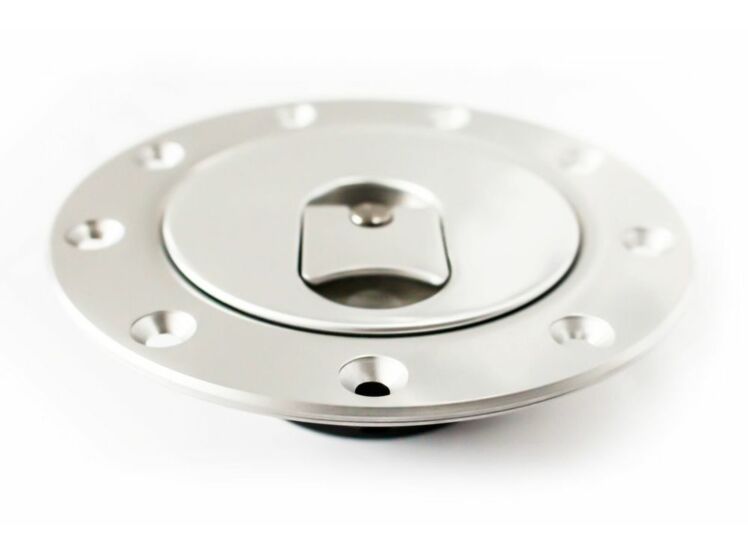

Flens, 9 schroeven, zonder slot

Options: Non-Locking.

Fixing Arrangement: 9 x M5 Countersunk Bolts

Applications: Fuel, Oil & Water Tanks

Finish: Centre: Anodised Clear (Silver)

Weight: 194 g

Supplied with:

        (1) Nitrile bonded Cork Gasket

  (9) M5 x 12mm S/S screws

  (9) Washers

  (9) Nylock Nuts

Materials

Centre-Forging: Aluminium Alloy 6082

Flange: Aluminium Alloy 6082/T6

O Ring: Viton A

Saddle: Acetal

Dimensions

Outside Diameter A: 120.0 mm

Centre Diameter B: 76.5 mm

Bolt Circle Dia. (PCD) 101.6 (4")

Overall Depth I 33.2 mm

Internal Bore Diameter 58.0 mm

Spigot Diameter 83.0 mm

Neck Diameter N/A

Flange Thickness 3.00 mm
