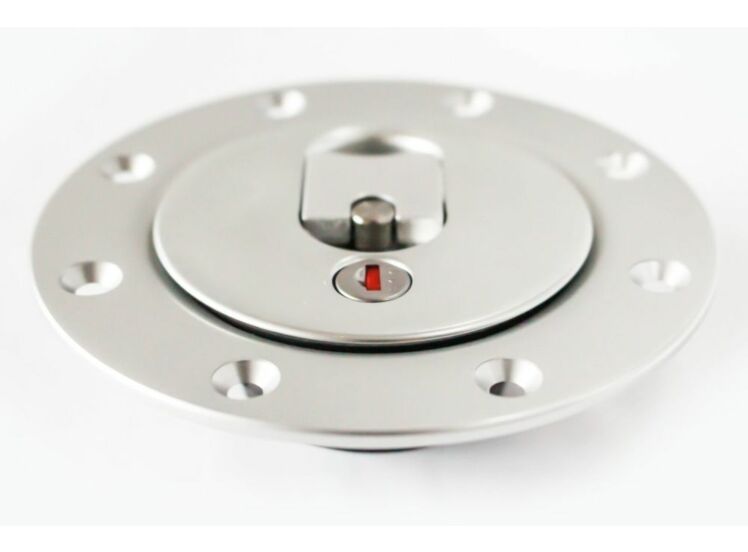

Flens, 8 schroeven, met slot
SKU:
A48L
Details
Specifications:
Fixing Arrangement: 8 x M05 CSK Bolts
Applications: Fuel, Oil & Water Tanks
Compatibilities: Compatible with Jet Fuel 100LL
Operation Temperature -40°C to +80°C
Finish: Anodised Clear
Weight: 250.0 grams
Supplied With: Cap
Flange
M05 Screw Pack (CSK Screws, Washers & Nyloc Nuts)
NBR Cork Gasket
Materials:
Centre Cap: Aluminium Alloy 6082/T6
O-Ring: Viton A (FPM or FKM)
Saddle: Acetal POM Kepital F20-03
Lever & Centre Pin: Stainless Steel 303/304
Washer & Nyloc Nut: Stainless Steel A2 Type
Gasket: Neoprene Bonded Cork (NBR)
Dimensions:
Outside Diameter A: 120.0mm
Centre Diameter B: 76.5mm
Bolts Circle Diameter C: 101.6mm
Depth D: 35.5mm (Adjustable)
Spigot E: 80.0 (Ø81.0 Cut-Out)
Neck Diameter: N/A
Flange Thickness: 3.0mm
Technical specifications
| Manufacturer | Newton |
|---|
