Facet Solid State Road

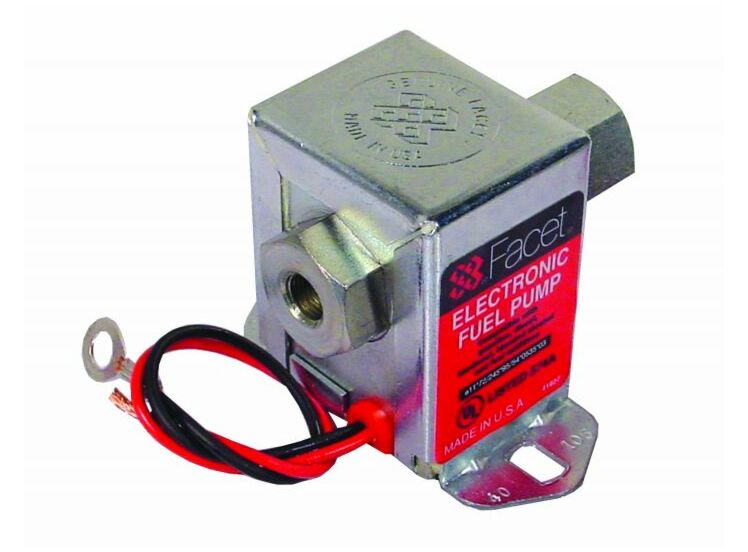

Facet 40105 Solid State Fuel Pump

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Specification:- Road

Pump:- 40105

Voltage:- 12v

Earth:- Neg

Pressure (Psi):- 3.0-4.5

Flow:- US Gallons/Hr 30

Dry Prime Height in Mtrs:- 0.3

Thread Size:- 1/8th nptf

Average Run Time or MTBF:- 6000 hrs

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Positive Shut-Off Valve:- No

Check Valve:- No

Operating Temperature:- -40º F to +180° F

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:- 75mm

Height:- 60mm

Weight:-0.5kg

Please Note:- The product in not suitable for use in the aircraft industry
