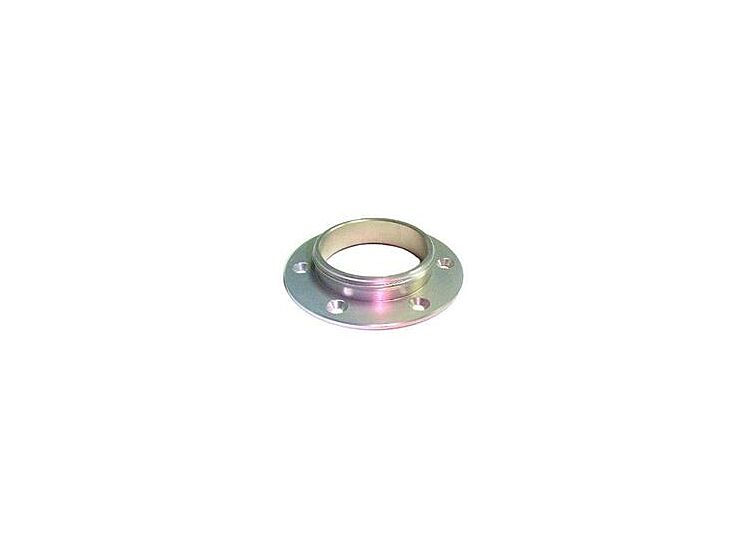

Classic 200 Flange

Specifications:

Options: N/A

Fixing Arrangement: 6 x M4 Countersink Bolts

Applications: Fuel, Oil & Water Tanks

Compatibilities: Compatible with Add Blue

 Operation Temperature -40°C to +80°C

Finish: Anodised Silver

Weight: 28.0 grams

Supplied With: Flange

 Screw Pack

 Gasket

Materials:

Flange: Aluminium Alloy 6082/T6

Flange Gasket: NBR Bonded Cork

Screw Pack: A2 type Stainless Steel

Dimensions:

Outside Diameter A: 82.0mm

Thread Specification B: 2.0” x 18 WHITFORM Med Thread

Height C: 16.0mm

Pitch Circle Diameter D: 63.5mm
