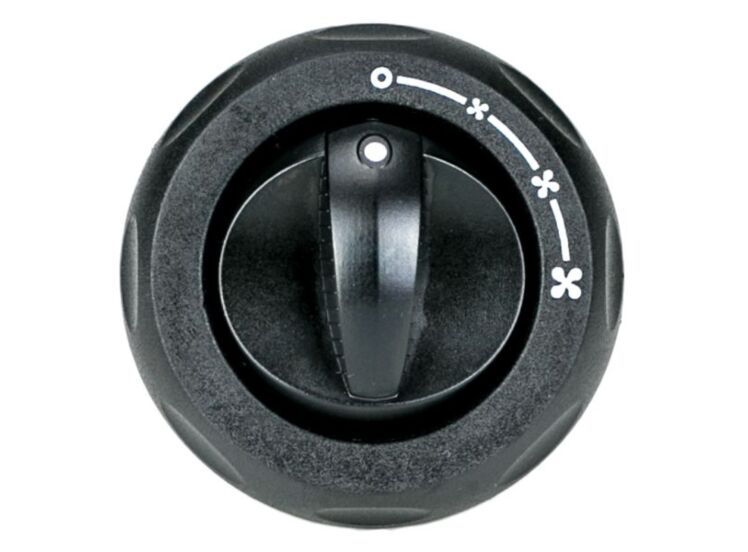

BAS Fan Switch with Knob (Plastic)
SKU:
BASDFS4
This 4 position fan switch can be used to control blowers and fans that have a built in resistor pack.
Details
This 4 position fan switch can be used to control blowers and fans that have a built in resistor pack.
This switch can handle up to 28v and 20a of current draw.
Voltage 6 - 28v
Max Current 20a
Terminal Size 6.3 mm
Terminal B Positive
Terminal L Low Speed on Fan
Terminal M Medium Speed on Fan
Terminal H High Speed on Fan
Terminal C Live only when L, M or H is selected.
Can be used to illuminate a light to show the Fan is operational, or as power for AC so that it can only run when the blower is operational.
Max Panel Thickness 4 mm
Switch Surround Diameter 62.5 mm
Technical specifications
| Manufacturer | Biesheuvel |
|---|
