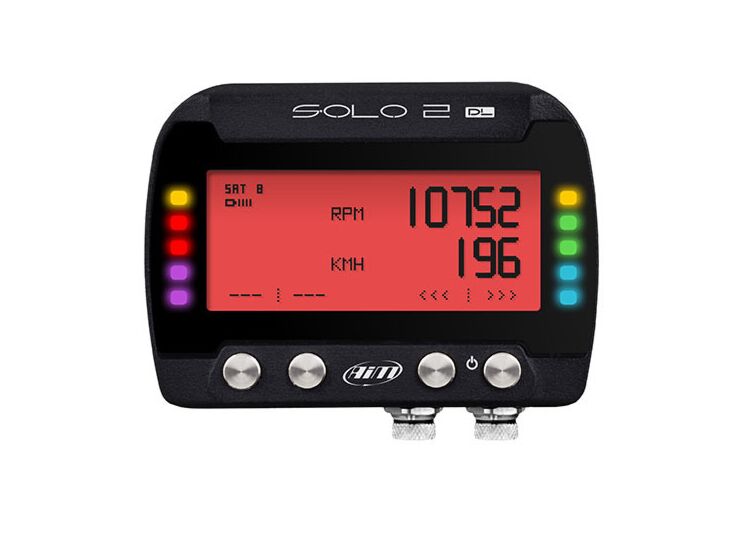

AIM Solo 2DL GPS Laptimer - mini datalogger

SKU:
AIMSOLODL
€907.50
Incl. 21% Tax
  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical 1000 m2 showroom

The new Solo 2 receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version and the lap times are calculated within a maximum gap not higher than 2/100 sec.

Details

In addition to all the specs of the Solo2, the Solo2DL has an ecu can-rs232, RPM and/or obd interface. This allows all kinds of data to be logged directly from the ECU and analyzed later. The Solo2DL can also be connected to the Smartycam HD. Despite the many functionalities, the Solo2DL is very easy to operate due to the intuitive menu structure.


AIM Solo 2 DL GPS lap timer / data logger with RPM input and ECU connection The Aim Solo DL 2 lap timer recognizes its position and the start / finish line immediately after switching on by the built-in GPS. Ideal for, for example, motorcycle road racing sports, MX motocross. The AIM Solo2DL data logger has a database of 3,000 circuits at its disposal. When the track is not available, simply engage the Auto Learning Mode to log all track data and lap times. The SoloDL 2 has a 4 Gb internal memory to store race data. Standard charger and mounting bracket are included.


The AIM SoloDL II offers several racing options:

Closed circuit racing

Point A to B

Regularity testing

Acceleration tests (0-100 km/h etc.)


The freely configurable RGB LEDs can be used as shift lights or as indication LEDs for the lap time difference compared to the best lap time. You can also analyze your measured performance on your I-phone when it is connected to the data logger Aim SoloDL2. You can choose between 7 different backlights for a clear image while riding your MX crosser, motorcycle, car or other vehicle on the track. The programs AIM RaceStudio 3 and RaceStudio Analysis are free to download and use. Updating Frimware, circuits, downloading race data with WIFI connection as well as analyzing your performance has never been easier on an Aim SoloDL 2. We have mounting AIM brackets and AIM ECU cables available for various racing engines, see the options for this.


Screen: Graphic

Screen resolution: 238x99 pixels

Display pages: 8

freely configurable Backlight: 7

configurable RGB colors Lap time indicator LEDs : 10 configurable RGB LEDs

Track database : Yes, integrated

Accuracy : <0.02 sec.

G-force and gyro sensors: Internal 3-axis ±5G accelerometer + 3-axis gyroscope + 3-axis magnetometer

Wi-Fi connection: Yes

GPS: 10 Hz

External power supply: 12 V DC

Memory: 4 GB

Battery type: Internal rechargeable Lithium battery

Control knobs: stainless steel

Dimensions: 98.0x73.7x30.2mm

Weight: 240 gr (battery included)

Water resistance: IP67



The Solo DL GPS laptimer comes with:


12 V external power cable - ecu can-rs232 or obd interface (specify when ordering)

230 V charger - mounting bracket - GPS manager and Race Studio Analysis software

Dutch manual AIM Solo DL GPS


race lap timer/data logger/performance meter 10Hz gps, lap times, position, distance traveled, lines driven, speed, acceleration and OBD and/or CAN/RS232 ecu communication are stored and analyzed in AIM RaceStudio AIM Solo DL GPS.

Technical specifications

Technical specifications
Manufacturer AIM
