80, 90 Quattro inc Avant (1983-1992) S2 Coupe B3 (1991-1996)

Name: 80, 90 Quattro inc Avant (1983-1992) S2 Coupe B3 (1991-1996)
SKU: PF_HS_AU3
Availability: InStock

SKU:

PF_HS_AU3

Options

Grouped product items

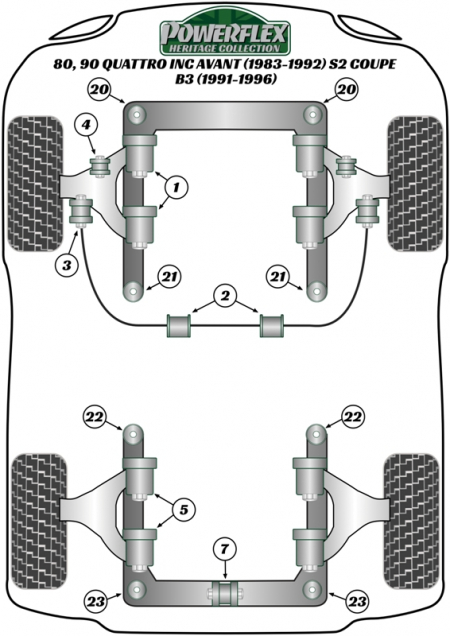

	Amount required per car	Ref. in diagram	Art.no.	Price
Front Wishbone Bush	4	1	PFF3-102H	€37.69
Front Anti Roll Bar Mount 24mm	2	2	PFF3-103-24H	€27.35
Front Anti Roll Bar Mount 25mm	2	2	PFF3-103-25H	€27.35
Front Anti Roll Bar Mount 21mm	2	2	PFR3-1011-21H	€27.35
Front Anti Roll Bar Mount 23.5mm	2	2	PFR3-1011-23.5H	€27.35
Front Anti Roll Bar Mount 25mm	2	2	PFR3-1011-25H	€27.35
Front ARB Drop Link to Wishbone Bush 12mm	2	3	PFF3-105-12H	€29.20
Front ARB Drop Link to Wishbone Bush 16mm	2	3	PFF3-105H	€28.48
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-21.5H	€27.70
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-23.5H	€27.70
Front Anti Roll Bar Drop Link Upper Bush	2	4	PFF3-104H	€28.48
Rear Wishbone Bush	4	5	PFF3-101H	€40.76
Rear Differential Mount	1	7	PFR3-107H	€56.97
Rear Subframe Front Bush 10mm	2	22	PFF3-121-10H	€43.12
Rear Subframe Front Bush 12mm	2	22	PFF3-121-12H	€43.12
Rear Subframe Rear Bush 10mm	2	23	PFF3-120-10H	€44.62
Rear Subframe Rear Bush 12mm	2	23	PFF3-120-12H	€44.62

PFF3-101H Fits 37mm Pressed Front Arms
PFF3-102H Fits 45mm Cast Front Arms
PFF3-104H & PFF3-105H Only Fit Up To 1992 Chassis Number 8A-N-200-000
PFF3-106-21.5H Fits models where there is no link rod between the anti-roll bar and control arm.
PFR3-1011-21/23.5/25H Front anti-roll bar mounts are tear-drop shaped
PFF3-120-10H & PFF3-121-10H fit vehicles with 10mm mounting bolts, vehicles with 12mm bolts use PFF3-120-12H & PFF3-121-12H
PFF3-101H Can also be aplied to the rear wishbone (diagram reference 5)
PFF3-120-10H, PFF3-120-12H, PFF3-121-10H & PFF3-121-12H Can also be aplied to the rear subframe (diagram reference 22 and 23)
